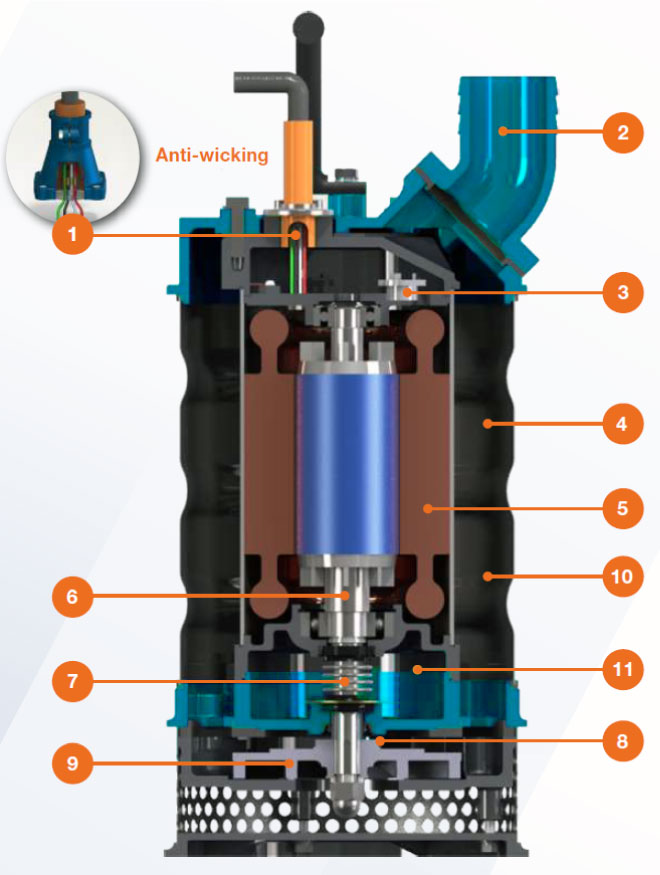

01
Watertight Cable Entry
Regular maintenance is essential for maximizing the efficiency and lifespan of your pumps. Our skilled technicians provide thorough inspections, preventive maintenance, and performance optimizations to keep your systems running smoothly.
02

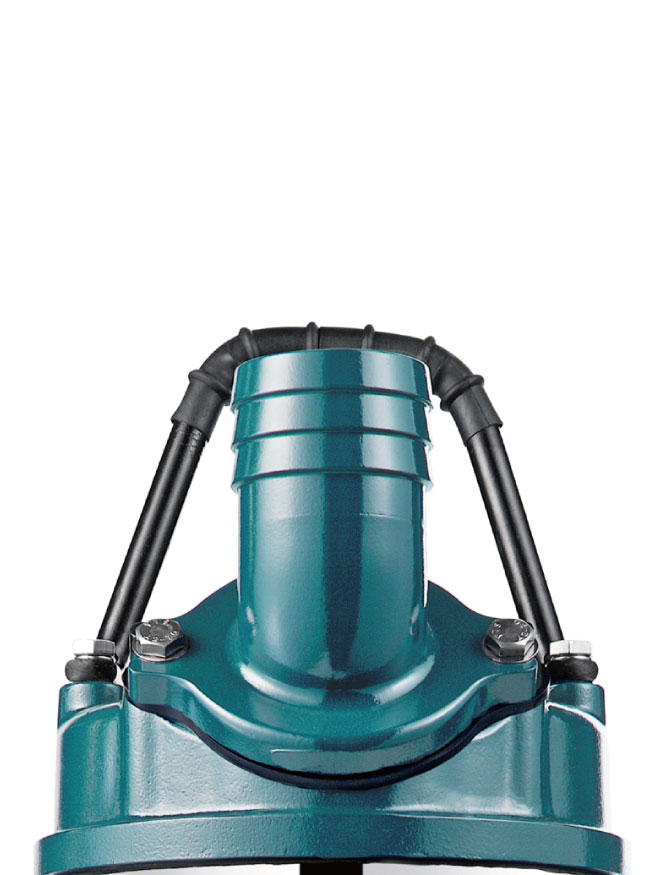

Multi-direction Discharge Coupling
Discharge can be converted between vertical and horizontal directions. In pumps 7.5 HP and larger, a vertical discharge connection is supplied as standard.
03
Motor Protector
The motor incorporates a circle thermal protector which protects against overheating and dry-run.
04
Top Discharge and Double Housing Design
Designed to construct a water jacket that provide maximum motor cooling effect for continuous operation at low water level, this feature forms the cylindrical and slim shape of the pump and enables the pump to be installed in confined spaces.
05
Submersible Motor
Air filled motor, housed in a watertight casing, conforms to Class F insulation.
06
C3 Ball Bearings and Hardened SS Shaft
High quality of C3 ball bearings and the well-balanced, hardened stainless steel shaft enhance stability during continuous pumping operations.
07
Double Mechanical Seals
Located in the oil chamber, the device is made of
quality materials with highly wear-resistant silicon
carbide in lower side that provides extra protection
against leakage and dry-run.
08
Protection for Mech. Seals and Shaft.
Lip seals and shaft sleeves are utilized for additional
protection against wear.
09
High Chrome Iron Impeller
The motor incorporates a circle thermal protector which protects against overheating and dry-run.
10
Durable Outer Jacket And Strainer
Corrugated Outer Jacket and strainer made from 304
stainless steel provide impact resistance to harsh
handling and conditions. In pumps 7.5 HP and larger,
flat 304 stainless steel outer casing is provided as
standard.
11
Food Grade Lubricant
SKI Pumps adopts eco-friendly lubricant to minimize
environmental impacts.
SKI PUMPS TDDW SERIES
TOP DISCHARGE DEWATERING
Patented High Chrome Impellers for Wear Resistance. Gray Iron Volute
and Top Discharge to Cool Motor with Pumped Liquid. Multi-Direction NPT
Discharge Allows for Vertical and Horizontal. Air Filled Motor Conforms to
Class F Insulation. 3450 RPM Motor to Provide Higher Heads. Double
Mechanical Seal in Oil Chamber. Kits to Convert Grouped Models to Allow
for Application Versatility and Minimal Investment for Varied Performance.
TDDW SERIES

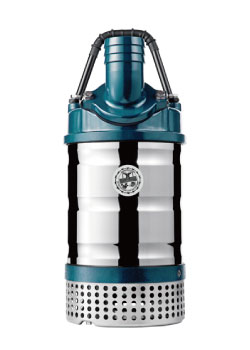

TDDW 22 (2” NPT, 2 HP) | TDDW 32 (3” NPT, 2 HP)
| ITEM | TDDW 22 | TDDW 32 |
|---|---|---|
| Discharge: | 2" NPT | 3" NPT |
| Rated HP: | 2 HP | 2 HP |
| Voltage: | 230|60|3 or 460|60|3 | 230|60|3 or 460|60|3 |
| FLA: | 6.3A (230) or 3.1A (460) | 6.3A (230) or 3.1A (460) |
| Shaft Speed: | 3450 RPM | 3450 RPM |
| Solid Handling: | 0.4" | 0.4" |
| Height: | 22.4" | 22.4" |
| Diameter: | Ø10.0" | Ø10.5" |
| Weight: | 73 Pounds | 73 Pounds |
TDDW SERIES

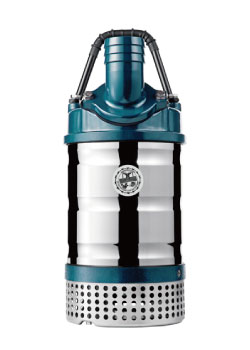

TDDW 23-230S (2” NPT, 3 HP, 1⌀) | TDDW 33-230S (3” NPT, 3 HP, 1⌀) | TDDW 43-230S (4” NPT, 3 HP, 1⌀)
| ITEM | TDDW 23-230S | TDDW 33-230S | TDDW 43-230S |
|---|---|---|---|
| Discharge: | 2" NPT | 3" NPT | 4" NPT |
| Rated HP: | 3 HP | 3 HP | 3 HP |
| Voltage: | 230|60|1 | 230|60|1 | 230|60|1 |
| FLA: | 16.0A | 16.0A | 16.0A |
| Shaft Speed: | 3450 RPM | 3450 RPM | 3450 RPM |
| Solid Handling: | 0.4" | 0.4" | 0.4" |
| Height: | 23.5" | 21.9" | 24.8" |
| Diameter: | Ø10.0" | Ø10.5" | Ø11.2" |
| Weight: | 77 Pounds | 77 Pounds | 95 Pounds |
TDDW SERIES

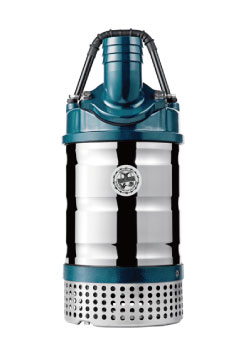

TDDW 23 (2” NPT, 3 HP) | TDDW 33 (3” NPT, 3 HP) | TDDW 43 (4” NPT, 3 HP)
| ITEM | TDDW 23 | TDDW 33 | TDDW 43 |
|---|---|---|---|
| Discharge: | 2" NPT | 3" NPT | 4" NPT |
| Rated HP: | 3 HP | 3 HP | 3 HP |
| Voltage: | 230|60|3 or 460|60|3 | 230|60|3 or 460|60|3 | 230|60|3 or 460|60|3 |
| FLA: | 9.2A (230) or 4.9A (460) | 9.2A (230) or 4.9A (460) | 9.2A (230) or 4.9A (460) |
| Shaft Speed: | 3450 RPM | 3450 RPM | 3450 RPM |
| Solid Handling: | 0.4" | 0.4" | 0.4" |
| Height: | 23.5" | 21.9" | 24.8" |
| Diameter: | Ø10.0" | Ø10.5" | Ø11.2" |
| Weight: | 77 Pounds | 77 Pounds | 95 Pounds |
TDDW SERIES
TDDW 25 (2” NPT, 5 HP) | TDDW 35 (3” NPT, 5 HP) | TDDW 45 (4” NPT, 5 HP)
| ITEM | TDDW 25 | TDDW 35 | TDDW 45 |
|---|---|---|---|
| Discharge: | 2" NPT | 3" NPT | 4" NPT |
| Rated HP: | 5 HP | 5 HP | 5 HP |
| Voltage: | 230-460|60|3 (DUAL VOLTAGE) | 230-460|60|3 (DUAL VOLTAGE) | 230-460|60|3 (DUAL VOLTAGE) |
| FLA: | 15.1A (230) or 7.7A (460) | 15.1A (230) or 7.7A (460) | 15.1A (230) or 7.7A (460) |
| Shaft Speed: | 3450 RPM | 3450 RPM | 3450 RPM |
| Solid Handling: | 0.4" | 0.4" | 0.4" |
| Height: | 24.6" | 24.8" | 24.8" |
| Diameter: | Ø11.5" | Ø10.6" | Ø11.2" |
| Weight: | 134 Pounds | 93 Pounds | 93 Pounds |
TDDW SERIES

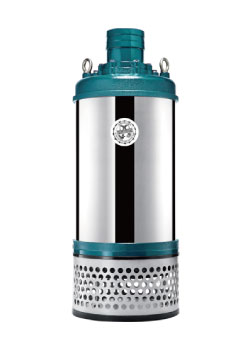

TDDW 410 (4” NPT, 10 HP) | TDDW 610 (6” NPT, 10 HP)
| ITEM | TDDW 37.5 | TDDW 47.5 |
|---|---|---|
| Discharge: | 3" NPT | 4" NPT |
| Rated HP: | 7.5 HP | 7.5 HP |
| Voltage: | 230-460|60|3 (DUAL VOLTAGE) | 230-460|60|3 (DUAL VOLTAGE) |
| FLA: | 22.6A (230) or 11.5A (460) | 22.6A (230) or 11.5A (460) |
| Shaft Speed: | 3450 RPM | 3450 RPM |
| Solid Handling: | 0.4" | 0.4" |
| Height: | 25.8" | 25.8" |
| Diameter: | Ø12.0" | Ø12.6" |
| Weight: | 132 Pounds | 132 Pounds |
TDDW SERIES
TDDW 37.5 (3” NPT, 7.5 HP) | TDDW 47.5 (4” NPT, 7.5 HP)
| ITEM | TDDW 410 | TDDW 610 |
|---|---|---|
| Discharge: | 4" NPT | 6" NPT |
| Rated HP: | 10 HP | 10 HP |
| Voltage: | 230-460|60|3 (DUAL VOLTAGE) | 230-460|60|3 (DUAL VOLTAGE) |
| FLA: | 30.2A (230) or 15.1A (460) | 30.2A (230) or 15.1A (460) |
| Shaft Speed: | 3450 RPM | 3450 RPM |
| Solid Handling: | 0.6" | 0.6" |
| Height: | 31.5" | 32.5" |
| Diameter: | Ø12.5" | Ø12.5" |
| Weight: | 205 Pounds | 214 Pounds |
TDDW SERIES
TDDW 315 (3” NPT, 15 HP) | TDDW 415 (4” NPT, 15 HP) | TDDW 615 (6” NPT, 15 HP)
| ITEM | TDDW 315 | TDDW 415 | TDDW 615 |
|---|---|---|---|
| Discharge: | 3" NPT | 4" NPT | 6" NPT |
| Rated HP: | 15 HP | 15 HP | 15 HP |
| Voltage: | 230-460|60|3 (DUAL VOLTAGE) | 230-460|60|3 (DUAL VOLTAGE) | 230-460|60|3 (DUAL VOLTAGE) |
| FLA: | 45.2A (230) or 22.6A (460) | 45.2A (230) or 22.6A (460) | 45.2A (230) or 22.6A (460) |
| Shaft Speed: | 3450 RPM | 3450 RPM | 3450 RPM |
| Solid Handling: | 0.4" | 0.4" | 0.6" |
| Height: | 34.0" | 33.8" | 34.3" |
| Diameter: | Ø13.9" | Ø13.9" | Ø13.9" |
| Weight: | 298 Pounds | 298 Pounds | 302 Pounds |
TDDW SERIES
TDDW 420 (4” NPT, 20 HP) | TDDW 620 (6” NPT, 20HP)
| ITEM | TDDW 420 | TDDW 620 |
|---|---|---|
| Discharge: | 4" NPT | 6" NPT |
| Rated HP: | 20 HP | 20 HP |
| Voltage: | 230-460|60|3 (DUAL VOLTAGE) | 230-460|60|3 (DUAL VOLTAGE) |
| FLA: | 60.3A (230) or 30.2A (460) | 60.3A (230) or 30.2A (460) |
| Shaft Speed: | 3450 RPM | 3450 RPM |
| Solid Handling: | 0.6" | 0.6" |
| Height: | 35.0" | 35.4" |
| Diameter: | Ø13.9" | Ø13.9" |
| Weight: | 311 Pounds | 313 Pounds |
TDDW SERIES
TDDW 430 (4” NPT, 30 HP) | TDDW 630 (6” NPT, 30HP) | TDDW 830 (8” NPT, 30 HP)
| ITEM | TDDW 430 | TDDW 630 | TDDW 830 |
|---|---|---|---|
| Discharge: | 4" NPT | 6" NPT | 8" NPT |
| Rated HP: | 30 HP | 30 HP | 30 HP |
| Voltage: | 460|60|3 | 460|60|3 | 460|60|3 |
| FLA: | 45.2A | 45.2A | 45.2A |
| Shaft Speed: | 3450 RPM | 3450 RPM | 3450 RPM |
| Solid Handling: | 0.6" | 0.8" | 0.8" |
| Height: | 42.7" | 43.3" | 45.4" |
| Diameter: | Ø16.7" | Ø16.7" | Ø16.7" |
| Weight: | 564 Pounds | 571 Pounds | 582 Pounds |
TDDW SERIES
TDDW 650 (6” NPT, 50 HP) | TDDW 850 (8” NPT, 50 HP)
| ITEM | TDDW 650 | TDDW 850 |
|---|---|---|
| Discharge: | 6" NPT | 8" NPT |
| Rated HP: | 50 HP | 50 HP |
| Voltage: | 460|60|3 | 460|60|3 |
| FLA: | 75.4A | 75.4A |
| Shaft Speed: | 3450 RPM | 3450 RPM |
| Solid Handling: | 0.4" | 0.8" |
| Height: | 50.9" | 49.4" |
| Diameter: | Ø20.9" | Ø20.9" |
| Weight: | 1,124 Pounds | 1,124 Pounds |
TDDW SERIES
TDDW 660 (6” NPT, 60 HP) | TDDW 860 (8” NPT, 60 HP)
| ITEM | TDDW 660 | TDDW 860 |
|---|---|---|
| Discharge: | 6" NPT | 8" NPT |
| Rated HP: | 60 HP | 60 HP |
| Voltage: | 460|60|3 | 460|60|3 |
| FLA: | 90.4A | 90.4A |
| Shaft Speed: | 3450 RPM | 3450 RPM |
| Solid Handling: | 0.4" | 0.8" |
| Height: | 50.9" | 49.4" |
| Diameter: | Ø20.9" | Ø20.9" |
| Weight: | 1,168 Pounds | 1,168 Pounds |
TDDW SERIES
TDDW SLIM JIM 24 (2” NPT, 4 HP) | TDDW SLIM JIM 34 (3” NPT, 4 HP)
| ITEM | TDDW SLIM JIM 24 | TDDW SLIM JIM 34 |
|---|---|---|
| Discharge: | 2" NPT | 3" NPT |
| Rated HP: | 4 HP | 4 HP |
| Voltage: | 230|60|3 or 460|60|3 | 230|60|3 or 460|60|3 |
| FLA: | 12.2A (230) or 6.3A (460) | 12.2A (230) or 6.3A (460) |
| Shaft Speed: | 3450 RPM | 3450 RPM |
| Solid Handling: | 0.3" | 0.3" |
| Height: | 25.9" | 24.8" |
| Diameter: | Ø7.4" | Ø7.4" |
| Weight: | 99 Pounds | 84 Pounds |
TDDW SERIES
TDDW SLIM JIM 311 (3” NPT, 11 HP)
| ITEM | TDDW SLIM JIM 311 |
|---|---|
| Discharge: | 3" NPT |
| Rated HP: | 11 HP |
| Voltage: | 230|60|3 or 460|60|3 |
| FLA: | 33.2A (230) or 16.5A (460) |
| Shaft Speed: | 3450 RPM |
| Solid Handling: | 0.3" |
| Height: | 31.4" |
| Diameter: | Ø11.1" |
| Weight: | 203 Pounds |
TDDW SERIES
TDDW SLIM JIM 320 (3” NPT, 20 HP)
| ITEM | TDDW SLIM JIM 320 |
|---|---|
| Discharge: | 3" NPT |
| Rated HP: | 20 HP |
| Voltage: | 230|60|3 or 460|60|3 |
| FLA: | 60.3A (230) or 30.2A (460) |
| Shaft Speed: | 3450 RPM |
| Solid Handling: | 0.3" |
| Height: | 36.0" |
| Diameter: | Ø11.1" |
| Weight: | 203 Pounds |
